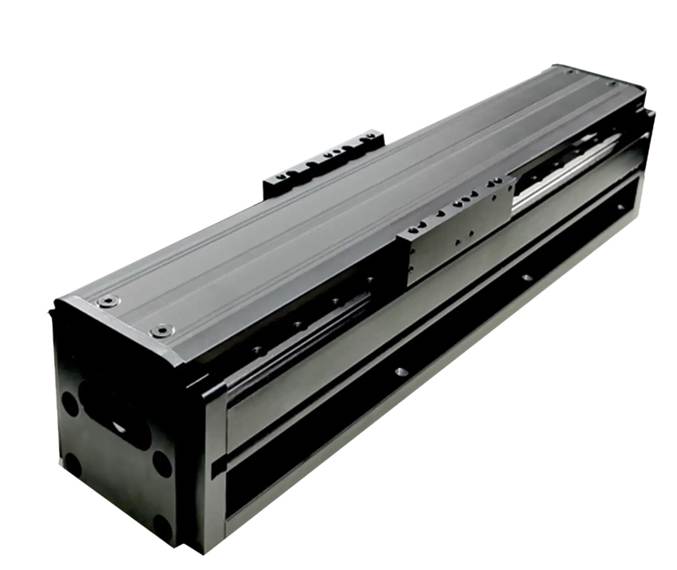

Linear motion systems are used in machines that need precise, repeatable movement in a straight line. From automated tools to high-speed manufacturing equipment, these systems support a wide range of industries. They rely on well-matched components to move loads smoothly, reduce friction, and maintain accuracy over time.
From the bearings and rails to motors and encoders, each part has a specific function. Understanding how these components work together helps you make better design and maintenance decisions. Whether you’re selecting parts for a new system or working to improve an existing one, knowing the basics is the first step.
Linear Bearings
Linear bearings guide moving parts along a straight path and help reduce friction. They make movement smoother, easier, and more accurate. There are several types, and each is made for a different kind of use:
Ball bushings
These are also called linear ball bearings. They have rows of tiny balls inside that roll between the bearing and the shaft. They work with round shafts and are common in 3D printers and light-duty equipment.
Ball bushings are smooth and low-friction, but they don’t handle side loads (forces from the side) very well.
Profile rail bearings
These bearings are used with square or rectangular rails. Inside the block are ball bearings that roll in a closed loop.
They give high accuracy and stiffness. These are often used in CNC machines and other tools that need very precise motion.
Plain bearings (also called sleeve or bushing bearings)
These don’t use balls or rollers. Instead, the moving part slides over a low-friction surface. They’re simple and quiet, and they can handle dirty or dusty environments better than other types.
Common materials include plastic, bronze, or other wear-resistant metals.
Roller bearings
Instead of balls, these use small rollers. Rollers spread the load over a larger area, which helps them carry heavier loads. They’re used in machines that need high load capacity and durability.
Each type has its strengths. The best one depends on how much weight the system needs to move, how fast it moves, and how clean the environment is.
Guide Rails
Guide rails are long, fixed tracks that keep parts moving in a straight line. Bearings slide or roll along the rail. The two common kinds are:
Round rails
These are simple rods. They’re easier to install and handle slight misalignment. They’re often used with ball bushings in lighter machines.
Profile rails
These are straight-edged rails with a square or rectangular shape. They give better support and precision. They’re paired with blocks that hold ball or roller bearings.
Lead Screws and Ball Screws
These screws turn rotary motion into linear motion. When the screw turns, the nut on the screw moves forward or backward.
Lead screws
These have a simple thread. They are quiet and work well in light-duty setups. But they create more friction, which can make them slower and less efficient.
Ball screws
These have small balls that roll between the nut and screw threads. This design reduces friction and makes movement smoother and more precise.
Both types are used in machines that need controlled and repeatable motion, like laser cutters and pick-and-place machines.
Linear Motors
A linear motor moves a load in a straight line using magnetic force. It works like a rotary electric motor that has been flattened out. There are no belts, gears, or screws. The motor pushes a part directly along a track. Because there are fewer moving parts, linear motors are clean, fast, and accurate. Linear motors are more complex and cost more than screw-based systems, but they are chosen when precision and speed matter most. They are used in:
- Robotic systems
- Semiconductor tools
- High-speed automation equipment
And there are a few common types of linear motors with different features.
Iron core linear motors
These have coils wound around iron laminations. They provide high force and good efficiency. But they also create magnetic attraction to the track, called cogging. This can cause slight vibration, which may affect surface finish or accuracy in sensitive systems.
Ironless linear motors
These don’t have iron in the moving part. That means no cogging and smoother motion. They are often used in systems that need very high precision, such as inspection machines or semiconductor tools. Because they don’t produce attraction to the track, they are also easier to install.
Tubular linear motors
These have a cylindrical design. The moving part (the “forcer”) slides inside a tube-shaped stator. They are compact and can provide force in both directions. Tubular motors are often used in packaging and pick-and-place machines.
Linear Encoders
A linear encoder measures position along a straight line. It tells the system exactly where the moving part is at any moment. This is useful in machines that need precise control. Without feedback, a system might move too far, not far enough, or lose its place. A linear encoder helps avoid that by sending position data back to a controller. A linear encoder has two main parts:
- Scale – a fixed strip or bar that holds the measurement pattern
- Readhead – a sensor that moves with the carriage or load
As the readhead moves along the scale, it reads the pattern and sends signals that represent the position. The controller uses these signals to adjust speed or stop the motion at the right time.
Carriages or Blocks
A carriage (also called a block) holds and supports the moving load. It connects the rail or screw to the part that needs to move. Inside, most carriages have bearings to help them move smoothly. Some have seals to keep grease in and dirt out. Others are made to be open for easier cleaning. The size and shape of the carriage depend on the weight it carries and how it needs to move.
When selecting components, please understand their function and consider how they will perform together. A well-matched system will reduce wear, improve accuracy, and lower maintenance needs over time. Whether you’re designing automation equipment, lab tools, or production machinery, getting the motion system right can make a big difference in long-term performance.
